BC-40 WINCH

Compressed BC-40 Swivel.jpg

SPEED

GUARANTEED



Improve operations while keeping your wire rope. Upgrade with the Patterson BC-40 Winch. Take the first step in modernizing your rigging, while also eliminating ratchet problems.

​

Key Features:

​

Fast Take-Up

​

Galvanized Corrosion Package

​

Easy to Use and Economical

​

Manual BC 40 Outlined 6 in Compressed.jp

Performance Data

Drum Capacity, 3/4"

95'

Drum Capacity, 7/8"

85'

Drum Capacity, 1"

70'

Overall Width

19.375"

Overall Height

23.75"

Overall Length

23.3125"

Net Weight

442 lbs

Ultimate Capacity

80,000 lbs

Typical Line Tension

10,000 lbs

Compressed BC-40 Swivel.jpg

Key Features

HOW

WE MAKE THEM

SAFER.

EASIER.

FASTER.

Fast Take-Up

The BC-40 has long been a favorite among barge operators for its unrivaled speed. A spinner knob on the compact hand wheel allows fast take-up, and the heavy-duty throw-out handle makes quick load release easy and safe. The BC-40’s design lets you make up or break up a tow in half the time of conventional rigging using ratchets, chains, and wires. That saves you time (and money).

Galvanized Corrosion Package

Patterson knows conditions are rough out there. That’s why we designed the BC-40 with a hot-dipped galvanized corrosion package. The patented double-dog design allows for higher line tension, and stud mounting allows for 360° operation. And the patented open-bottom design makes for easy clean out.

Easy to Use and Economical

The BC-40 Winch is much easier to use than ratchet turnbuckles. Plus, it saves time and money by relieving deck hands of the arduous tasks of carrying turnbuckles out and lugging ratchets back and forth.

Mounting Configurations

Compressed BC-40 Swivel.jpg

BC-40 Swivel

Compressed BC-40 D-Ring.jpg

BC-40 Weld Down with Doubler

Compressed BC-40 Weld Down with Doubler.
BC40 Performance Data
BC-40 Key Features
BC-40 Mounting
BC40 Top
Ariel view of shipping containers at a marine dock.

Industries

We Help

Make Safer

Compressed BC-40 Weld Down.jpg

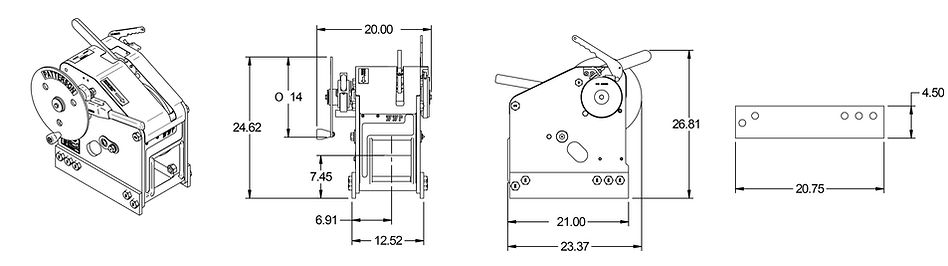

BC-40 Weld Down

BC-40 D-Ring Mount
